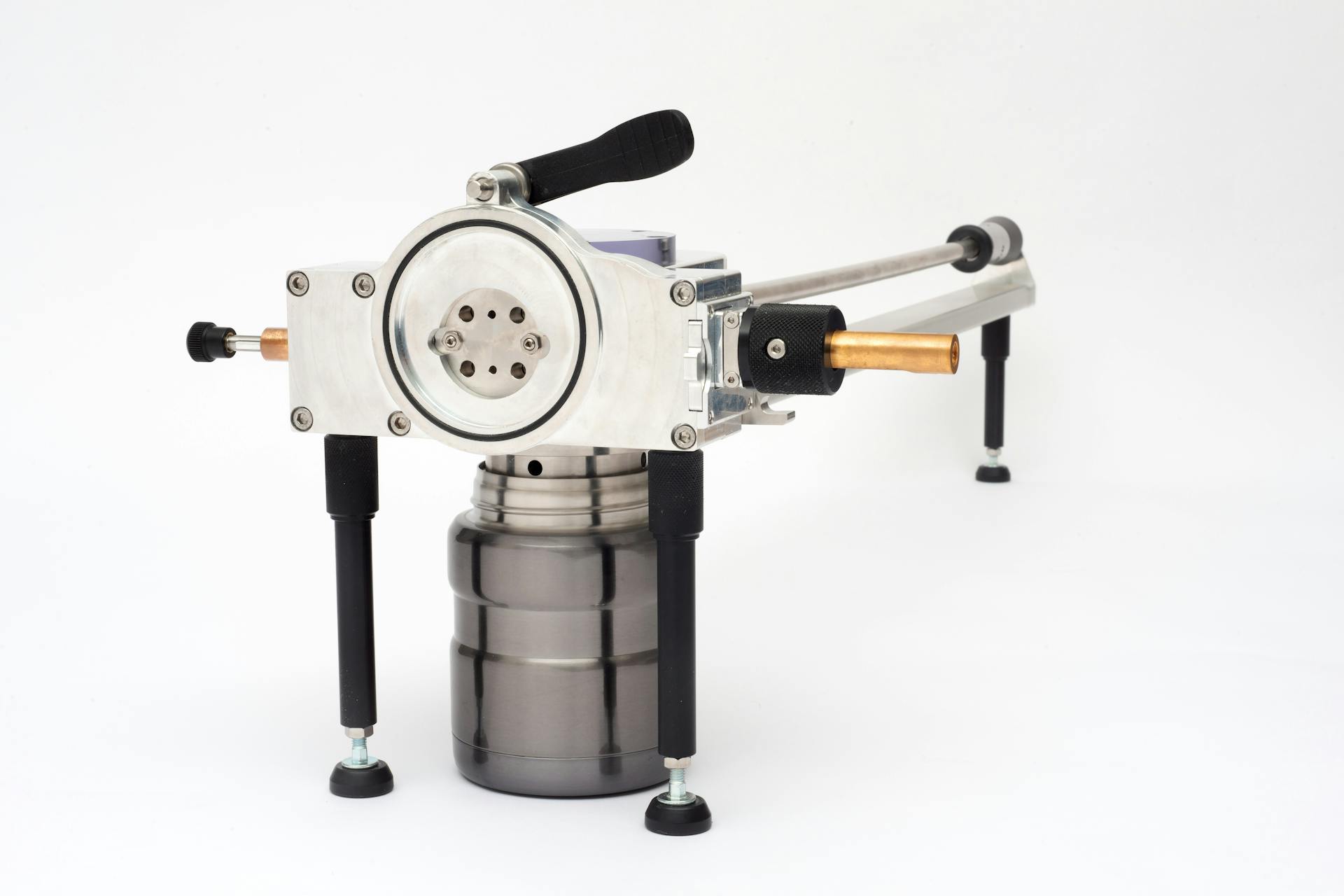

Actively Cooled Transfer (ACT)

• Compatible with most makes and models of SEM and FIB-SEM
• Can be interfaced with other devices, such as Ion Mills
• Cold stage cooled to -160 °C
• Anti-contaminator cooled to -180 °C
• Glovebox interfacing required for inert gas transfer
• Transferring materials sensitive to atmosphere, such as Battery and Fuel Cells
• Operates in conjunction with the PP3010 and PP3006
• Transfer in high vacuum in the region of 10-6 mbar

Available with:

• PP3010
• PP3006

• Glovebox to PP3006
• Glovebox to PP3010 Prep Chamber
• Glovebox to Ion Mill with Cryogenic Stage
• Ion Mill with Cryogenic Stage to PP3006
• Ion Mill with Cryogenic Stage to PP3010 Prep Chamber
• All workflows can transfer in both directions

• Weight 5 kg approx
• Overall dimensions W= 300 mm, L=881 mm, D= 303 mm
• Stage temperature ≤-160°C (in 30 mins)
• Vacuum level Transfer in high vacuum in the region of 10-6 mbar
• Operating pressure when interfacing with Glovebox ≤ 1 bar.
• Warranty 1-year warranty, with an extended warranty offer upon request
• Further Information The chart of Pressure vs Time (pump down time), the chart of Temperature (Stage and Anti-contaminator) vs Time and EDS results of Oxygen reduction using ACT for sample transfer are upon request.

Configuration Interfacing required, please contact [email protected] for more information.
