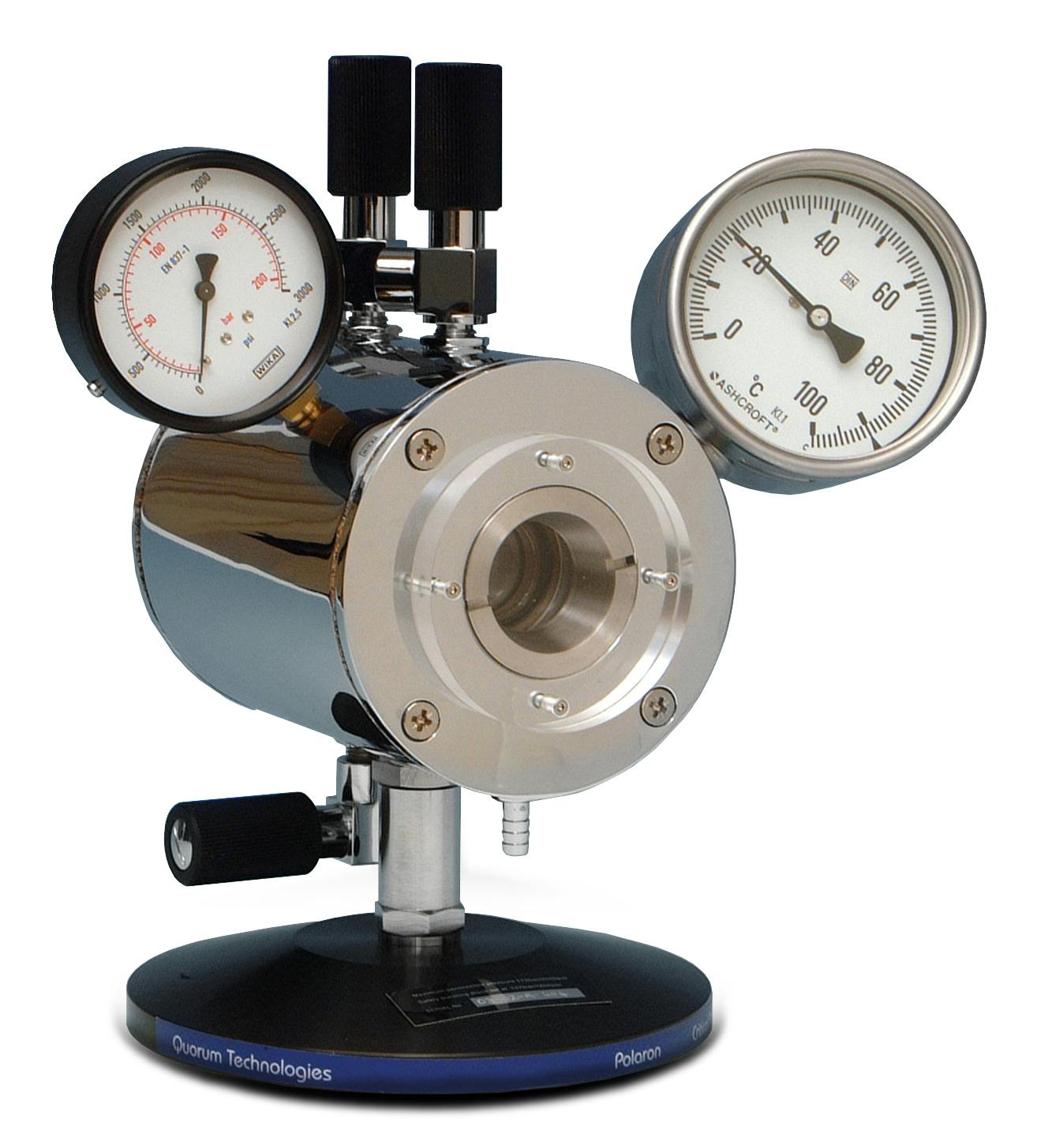

E3100

• Economical to run
• Simple robust construction
• Horizontal chamber
• Large, robust valves for draining of fluids, ingress of liquid CO₂ and venting of gas
• Specimen handling - Temperature controlled by hot water (mains or E4860)

Other options and accessories

• E3100-01 Specimen holder (boat). Included as standard with the E3100 E E3100 -02 Specimen holder (boat) for microscope coverslips
• E300-01 Holder for 3.05 mm TEM specimen grids
• CPD800A Porous pots with lids, 12.7 mm x 15.5 mm - E4860 Recirculating Heater Chiller to control heating and cooling cycle

Critical point dryer liquid carbon dioxide (CO2 ) requirements All models require a cylinder of liquid CO2 fitted with a siphon tube (normally indicated by a vertical white stripe on the cylinder). If there is any doubt regarding the presence of a siphon tube, advice should be sought from the supplier.
