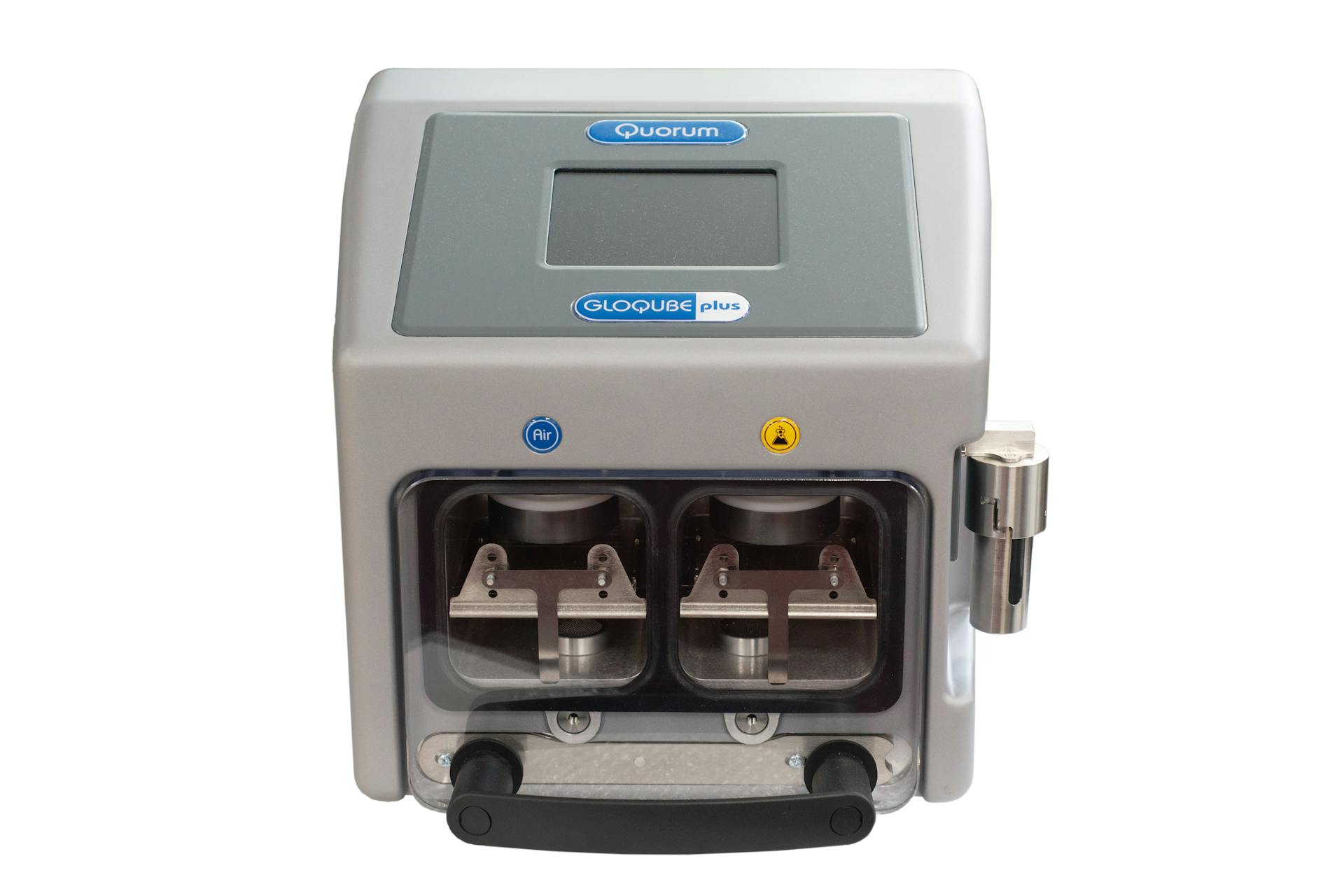

GloQube

• Short in-air cycle time
• Second chamber for separating in-air and in-vapour processes
• No cross-contamination between chambers due to post-process flush cycle
• Automatic vapour delivery ensures reliable and reproducible results
• Purge cycles reduce water vapour and oxygen concentrations, ensuring excellent yield of specifically orientated macromolecules
• Adjustable slow vent time to minimize sample disturbance
• Optional fast vent for rapid process times
• Safe handling of reagent
• Three level adjustable height sample stage ensures repeatable results

• Hydrophilisation and cleaning of TEM grids carbon support films for better sample spreading
• Improved adhesion and orientation of proteins, nucleic acids and antibodies
• TEM grid preparation for nanoparticle studies

Plasma current

1-50 mA

HV power supple

30 W

Maximum voltage

800 V

Electrode polarity -  clean chamber

DC glow positive DC glow negative

Sample stage

125 x 100 mm (4.9” x 3.94”) for two 25 x 75 mm (1” x 3”) slides and a 36 place grid holder

Sample stage operational heights

Adjustable 12.5 mm (0.5”), 22.5 mm (0.9”) or 35 mm (1.38”)

Pump hold time

0-72 hours

Process time

1-900 seconds
