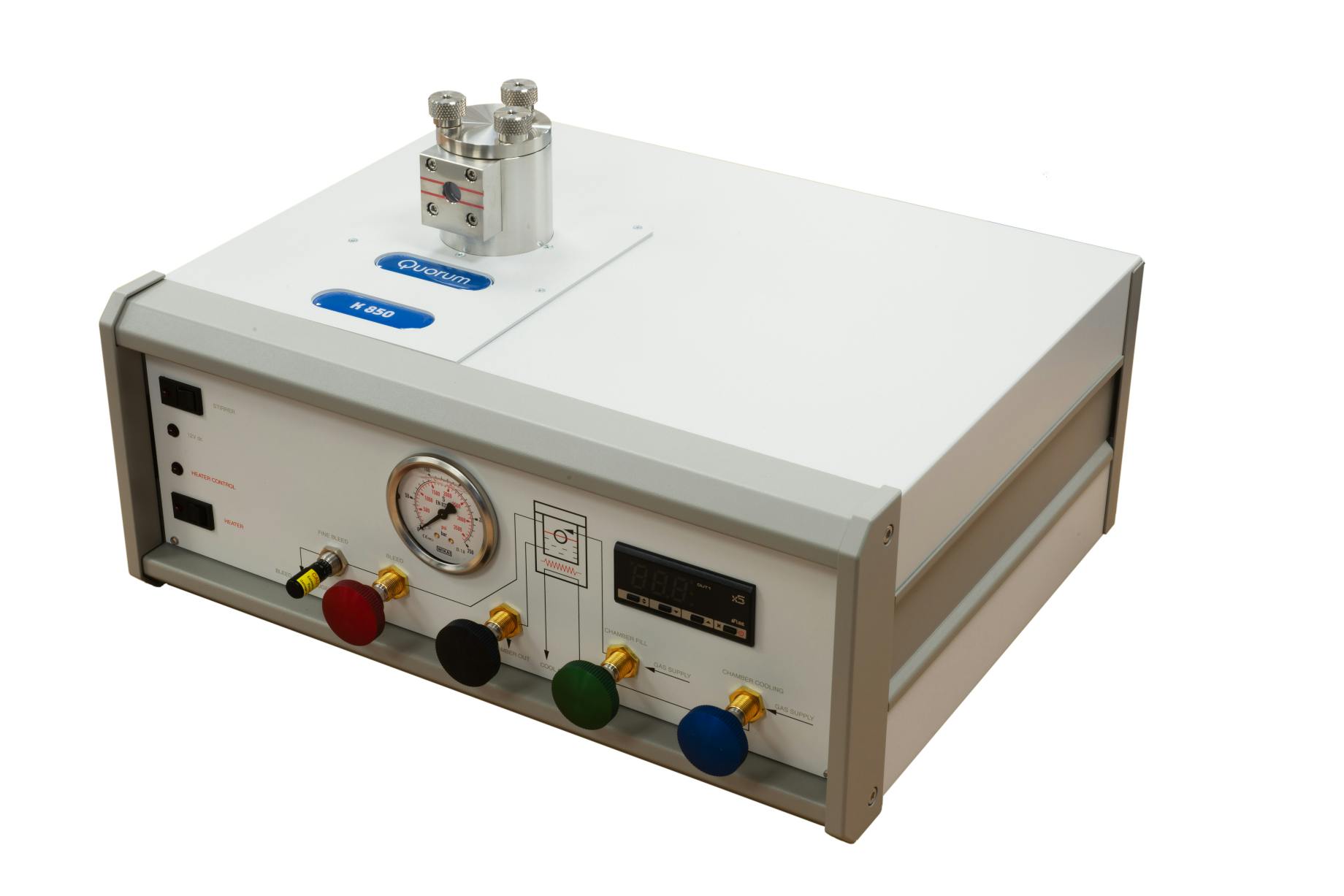

K850

• Vertical chamber with top filling and bottom draining
• Side viewing port – good visibility
• Built-in adiabatic cooling and thermoelectric heating – accurate temperature control
• Fine-control needle valve pressure let down – precise control of decompression avoids potential damage to specimens by uncontrolled pressure release
• Built-in magnetic stirrer- enhanced solvent exchange
• Pressure monitoring with safety cut-out for over pressure
• Chamber: vertical, diameter 32mm, height 47mm with glass viewing port and safety shield

Options and accessories

• AL800019-1 Standard specimen holder with 12 individual specimens wells (each 8mm Ø x 8 mm H)
• EK4130 Holder for bulk specimens (a single large specimen container)
• EK4135 Glass microscope coverslip holder
• EK4141 TEM specimen grid holder
• EK4145 Holder for porous specimen pots and 3 x pots 12.7mm x 15.5mm for small or delicate specimens
• CPD800A Porous specimen pots 12.7 mm x 15.5 mm (pack of 10 for small delicate specimens

Critical point dryer liquid carbon dioxide (CO₂) requirements All models require a cylinder of liquid CO₂ fitted with a siphon tube (normally indicated by a vertical white stripe on the cylinder). If there is any doubt regarding the presence of a siphon tube, advice should be sought from the supplier.
