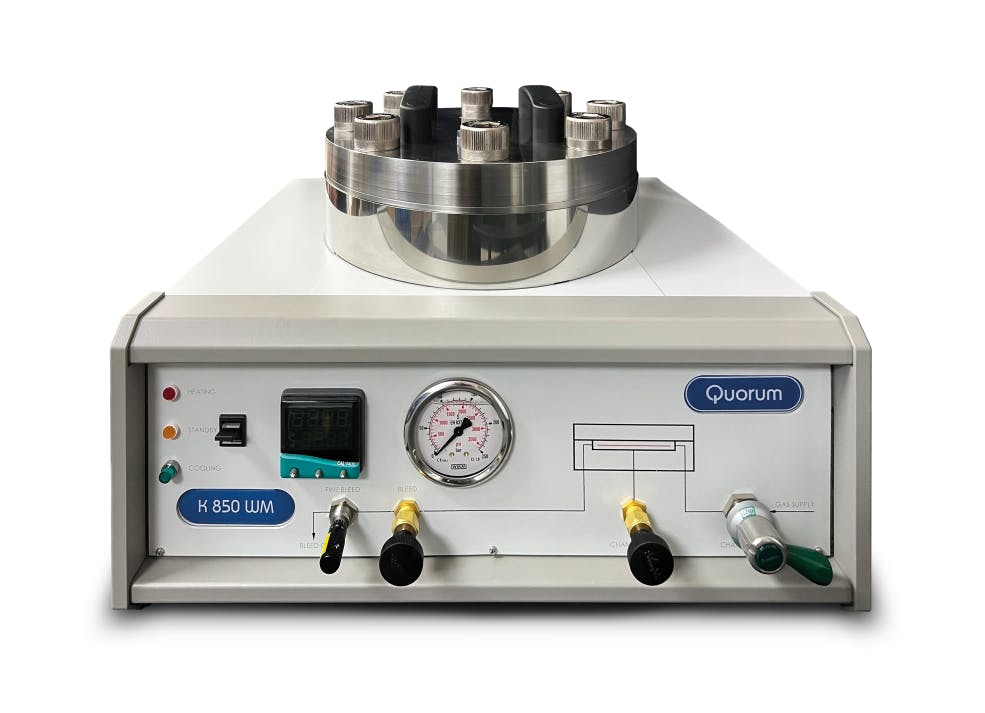

K850 WM

• Vertical chamber with top-loading and bottom-draining
• Thermo-electric heating
• Fine control needle valve pressure release
• Temperature monitoring with safety cut-out for over pressure
• Easy to remove wafers from the chamber

• Chamber size: 32 mm Ø x 47 mm H in dimension
• Chamber: vertical, diameter 32mm, height 47mm
• Large chamber critical point dryer for 4” or 6” wafers For a complete working system the following is required:
• E4860 Recirculating heater/chiller for cooling chamber (please specify voltage)
• EK3102 Carbon dioxide bottle heating system. Allows faster filling of liquids CO₂ especially if the cylinder is stored in a cool environment

Critical point dryer liquid carbon dioxide (CO2 ) requirements All models require a cylinder of liquid CO2 fitted with a siphon tube (normally indicated by a vertical white stripe on the cylinder). If there is any doubt regarding the presence of a siphon tube, advice should be sought from the supplier.
