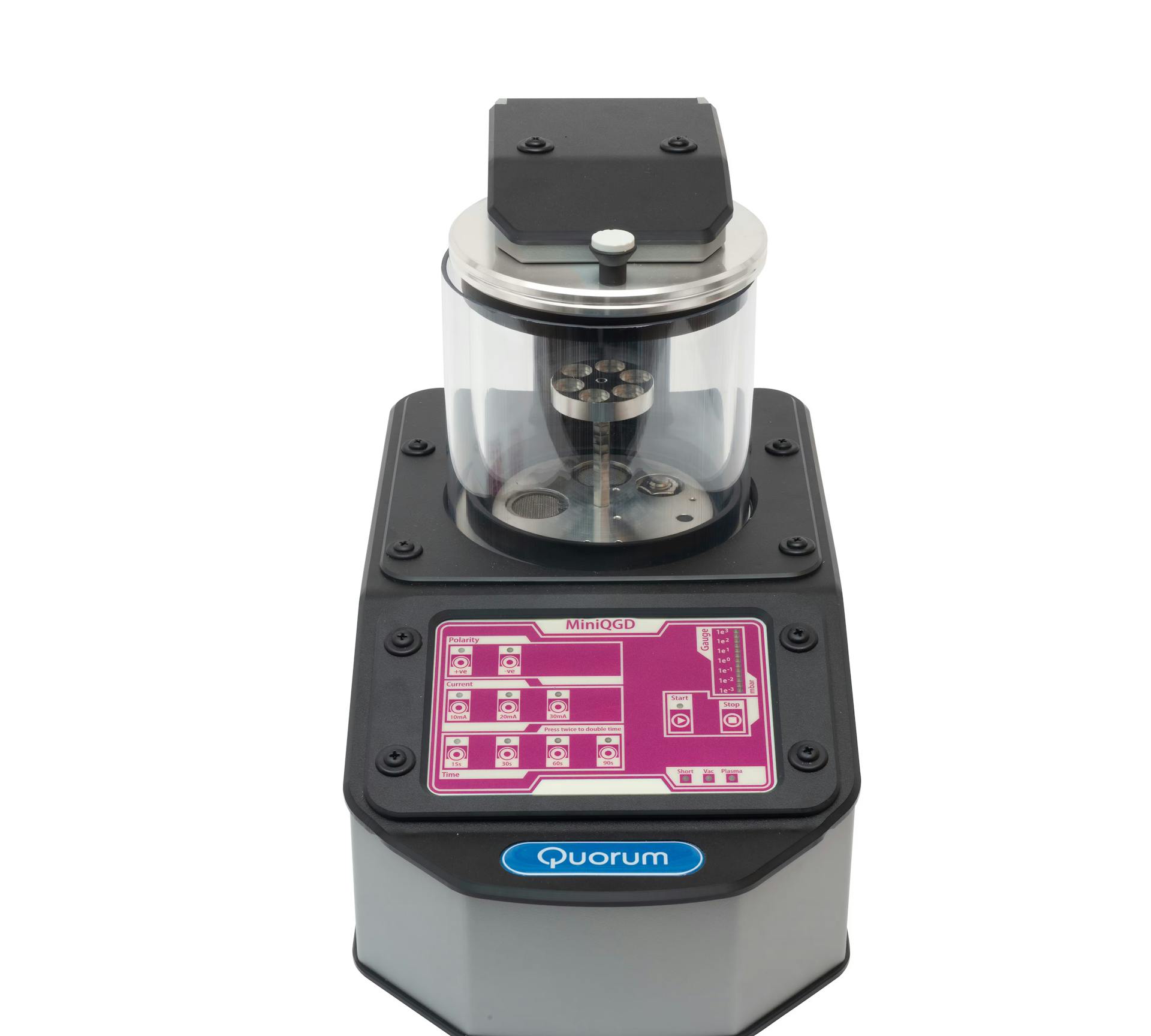

MiniQ GD

• Robust touch panel
• Small footprint
• Automatic operation with minimal user intervention required
• Detachable chamber with implosion guard allowing for easy cleaning
• Pre-set profiles with single touch operation
• Supplied with 50 mm diameter sample stage with TEM grid holder
• Three different height settings provided to refine glow discharge processes
• Suitable for hydrophilic/ hydrophobic surfaces modification
• DC positive and negative electrode polarity settings available
• Adjustable glow discharge current settings

• Changing wettability of surfaces, primarily used for TEM grids to improve the spread of particles/ molecules on them , could also be used for SEM and AFM imaging when samples are applied onto substrate surfaces from liquid.
• Soft cleaning of surfaces

Instrument dimensions

• Instrument size 225 mm (W) x 430 mm (D) x 328 mm (H)
• Instrument size with chamber open 225 mm (W) x 430 mm (D) x 480 mm (H)

Weight

• Unit weight: 8.7 kg
• Packed weight: 12 kg

Packing dimensions

• 500 mm W x 320 mm D x 450 mm H

Chamber size

• Borosilicate glass Ø130 mm (outer diameter) x Ø120 mm (internal diameter) x 127 mm (height)

Pump

• A standard vacuum pump is required for use with the MiniQ GD. Please note, the MiniQ GD specifications are based on use with a Pfeiffer Duo 6 rotary pump.

User interface

• Capacitive touch sensitive sensors with LED indicators and haptic feedback. LED bar graph for vacuum gauge. Multi-colour status LED.

Glow discharge current

• 10, 20 or 30 mA

Operational vacuum

1 x 10^-1 mbar

Electrode polarity -  clean chamber

• DC glow positive DC glow negative

Sample stage

• 50 mm Ø 6-place stub stage with TEM grid holder

Process time

• 15, 30, 60, 90 seconds (process times can be doubled)
