QuickLok Ambient Temperature Airlock System

Pfeiffer HiCube and Fittings Assembly Kit

Ambient temperature airlock for SEM, FIB-SEM, beamline

Compatible with high vacuum SEM, FIB-SEM , beamline and vacuum systems

Sample transfer system for SEM, FIB-SEM, beamline and vacuum platforms.

The QuickLok® sample transfer system is designed to allow air or moisture sensitive samples to be transferred from a glove box, either under inert gas atmosphere or under vacuum, to an SEM or other system.

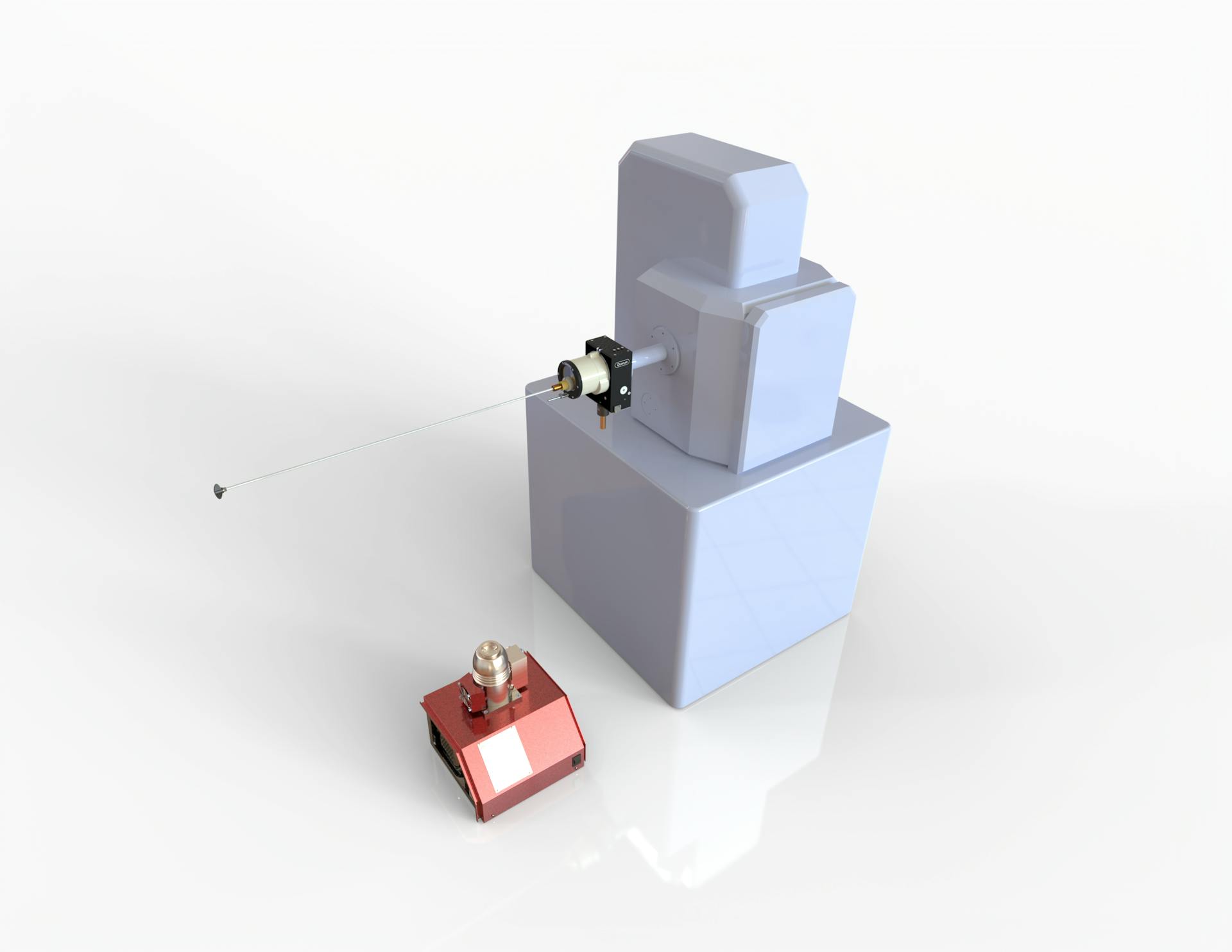

The QuickLok® consists of an airlock, turbo pumping system (optional) and transfer pot. An adapter flange is required to fit the QuickLok® to the SEM or other system. Specimens are mounted on a transfer shuttle and are then loaded through the airlock onto a stage adapter fitted to the SEM stage.

The QuickLok® is automated and interlocked to prevent any risk of loss of microscope vacuum.
