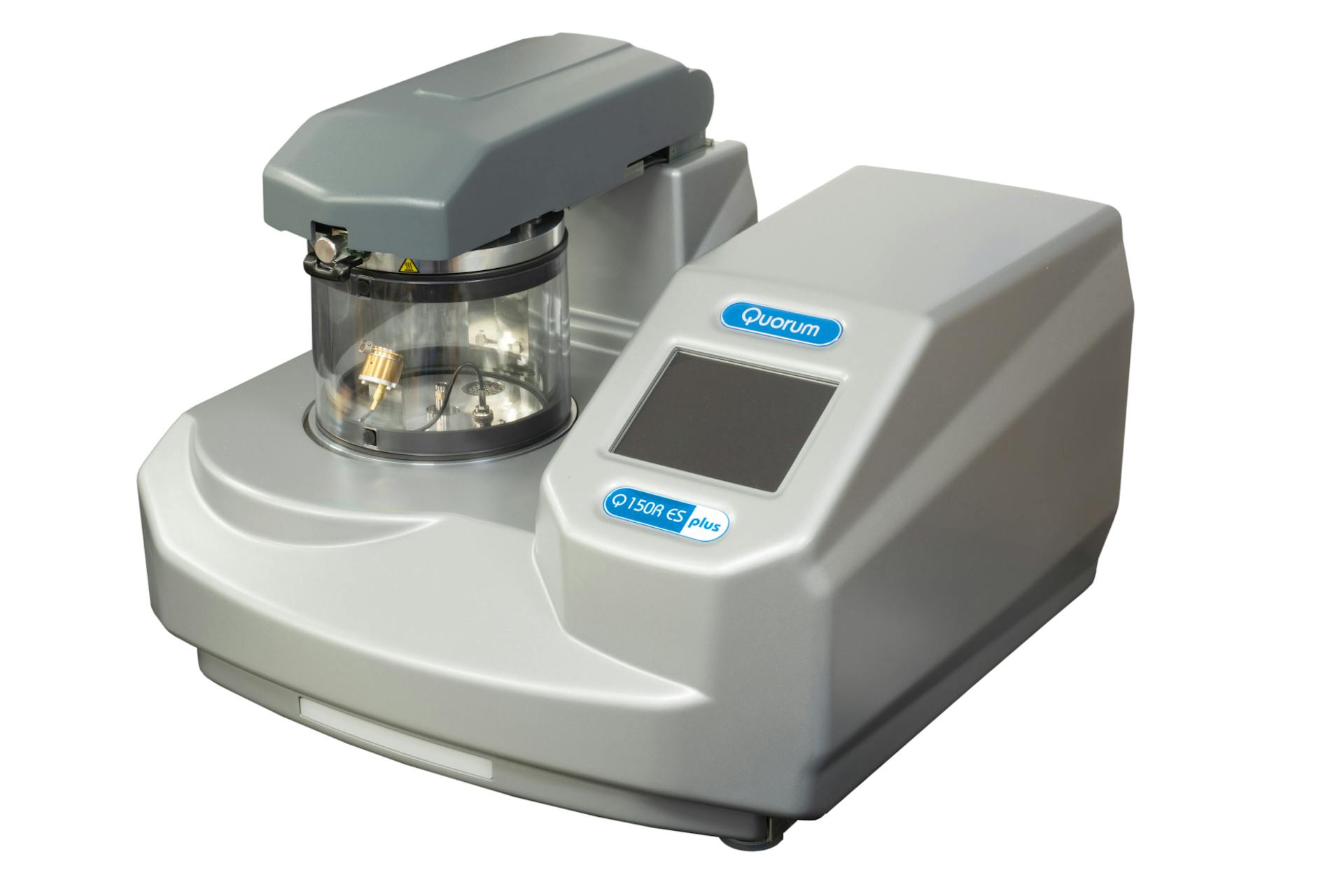

Instrument case
585 mm W x 535 mm D x 410 mm H
(total height with coating head open: 650 mm)
Weight
28 kg (packed: 42 kg)
Packed dimensions
725 mm W x 660 mm D x 680 mm H
Work chamber
Borosilicate glass 150 mm ID x 127 mm H
Display
115.5mm W x 86.4mm H (active area), 640 RGB x 480 (display format), capacitive touch colour display
User interface
Full graphical interface with touch screen buttons includes features such as a log of the last 1000 coatings and reminders for when maintenance is due.
Sputter target
Disc-style 57 mm Ø. 0.1 mm thick gold (Au) target is fitted as standard. R S and R ES versions only. Pt, Pt/Pd, Au, Au/Pd, Ag, Pd and Cu target options available in various thicknesses.
Carbon evaporation source
Carbon fibre woven cord 1m is supplied with carbon fibre head as standard. Carbon rod head option available. R E and R ES versions only.
Specimen stage
50 mm Ø rotation stage with rotation speed of 8-20 rpm.
Other stages available on request.
