Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, and carbon evaporation, designed for ultra-high-resolution SEM and FIB-SEM applications.

Ultra-high-resolution magnification SEM and FIB-SEM

Carbon coating for elemental analysis and carbon coating of TEM grids

The Q150V ES Plus is a turbomolecular pumped combined sputter coater and carbon evaporation system, optimised for high vacuum applications. Together with the use of a wide-range Penning/Pirani gauge, this enables the sputtering of oxidising metals with ultra-fine grain sizes, which are suitable for high resolution imaging. This also allows for ultra-fine coatings of carbon for use in TEM imaging. The deposition head inserts can be swapped in seconds. Metal evaporation/aperture cleaning option available.

QSeries New Brochure.pdf

Capable of achieving vacuum of 1x10⁻⁶ mbar

Capable of sputtering non-oxidizing and oxidizing metals e.g. Cr, Ir, W, Al, Ti, Au, Pt

Capable of carbon rod evaporation (carbon fibre evaporation available as option)

16GB of memory can store more than 1000 recipes

Multiple-user profiles can be set up on one instrument

Standard and extended height glass chamber included as standard

(total height with coating head open: 650 mm)

115.5mm W x 86.4mm H (active area), 640 RGB x 480 (display format), capacitive touch colour display

Full graphical interface with touch screen buttons, includes features such as a log of the last 1000 coatings and reminders for when maintenance is due.

Disc-style 57 mm Ø 0.5 mm thick chromium (Cr) target is fitted as standard. T S and T ES versions only. Pt, Pt/Pd, Pt, Au, Au/Pd, Ni, Ag, Pd, Cu, Cr, W, Al, Ti, Fe, Ir, Co, Sn, Mo, Mg, Ta and ITO target options available in various thicknesses.

Carbon rods 3.05mm X 300mm x 10 qty are supplied with carbon rod head as standard. Carbon fibre head option available. T E and T ES versions only

50 mm Ø rotation stage with rotation speed of 8-20 rpm.

Turbo pumped coater suitable for carbon evaporation, designed for ultra-high-resolution SEM and FIB-SEM applications.

The Q150V S Plus is a turbomolecular-pumped sputter coater, optimised for high-vacuum applications, with an ultimate vacuum of 1 x 10⁻⁶ mbar. Together with the use of a wide-range Penning/Pirani gauge, this enables the sputtering of oxidising metals with ultra-fine grain sizes, which are suitable for high resolution imaging. Available sputtering targets include chromium, iridium and all noble metals.

Capable of achieving vacuum of 1 x 10⁻⁶ mbar

Capable of sputtering non-oxidizing and oxidizing metals e.g. Cr, Ir, W, Al, Ti, Au, Pt.

USB port for upgrades and download of process log files

Capable of sputtering oxidizing and non-oxidizing metals e.g Cr, Ir, W, Al, Ti

Disc-style 57 mm Ø. A 0.3 mm thick chromium (Cr) is fitted as standard. V S and V ES versions only. Pt, Pt/Pd, Pt, Au, Au/Pd, Ni, Ag, Pd, Cu, Cr, W, Al, Ti, Fe, Ir, Co, Sn, Mo, Mg, Ta and ITO target options available in various thicknesses.

Entry-level coater, equipped with rotary pump, suitable for sputter coating non-oxidising metals (Au, Au/Pd and Ag).

The MiniQ S is ideally suited to the budget-conscious user who also demands reproducible results in an easy-to-use instrument. Suitable for most makes and models of Benchtop-SEMs and W-SEMs.

MiniQS Brochure.pdf

Capable of achieving vacuum of 5x10⁻² mbar

Pre-set profiles with single-touch operation

Sputter head is hinged for easy operation

Detachable chamber with implosion guard and top-plate allowing for easy cleaning

Automatic operation with minimal user intervention required

Compact sized; ideal for use with benchtop SEMs

Possibility of coating samples to 50 mm diameter

225mm W x 420mm D325 x 325mm H (480mm H with the coating head open)

Disc-style 57 mm Ø 0.1mm thick gold (Au) target is included in the accessory pack

Gold/palladium (Au/Pd) and silver (Ag) target options available

You can purchase the instrument with a pump, or without. Please note, the MiniQS specifications are based on use with a Pfeiffer Duo 6 pump.

Rotary pumped coater suitable for sputtering non-oxidising metals (Au, Au/Pd, Ag, Pt, and Pt/Pd).

Rotary pumped coater suitable for use with Tungsten/LaB⁶ SEM and Benchtop SEM - an automatic sputter coater for non-oxidising metals. Available sputtering targets including gold, gold/palladium and platinum.

Capable of sputtering non-oxidizing metals e.g. Au, Pt , Pd, Au/Pd

USB port for upgrades and download of log files

New multi-colour LED visual status indicator

Interchangeable stage options and plug-in heads

Full graphical interface with touch screen buttons includes features such as a log of the last 1000 coatings and reminders for when maintenance is due.

Disc-style 57 mm Ø. 0.1 mm thick gold (Au) target is fitted as standard. R S and R ES versions only. Pt, Pt/Pd, Au, Au/Pd, Ag, Pd and Cu target options available in various thicknesses.

50 mm Ø rotation stage with rotation speed of 8-20 rpm.

Rotary pumped coater suitable for carbon evaporation.

Carbon coating for elemental analysis and carbon coating of TEM grids

Rotary pumped coater suitable for use with Tungsten/LaB⁶ SEM and Benchtop SEM - an automatic carbon coater cord for TEM applications including for carbon coating TEM grids.

Capable of carbon fibre evaporation (carbon rod evaporation available as option)

Carbon fibre woven cord 1m is supplied with carbon fibre head as standard. Carbon rod head option available. R E and R ES versions only.

Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, designed for high resolution SEM and FIB-SEM applications.

The Q150T S Plus is a turbomolecular pumped sputter coater system. The turbomolecular pump enables the sputtering of oxidising metals, which have a lower grain size suitable for high-resolution imaging.

Capable of achieving vacuum of 5x10⁻⁵ mbar

Cryo Transfer System for Environmentally Sensitive Samples

Glovebox to Ion Mill with Cryogenic Stage

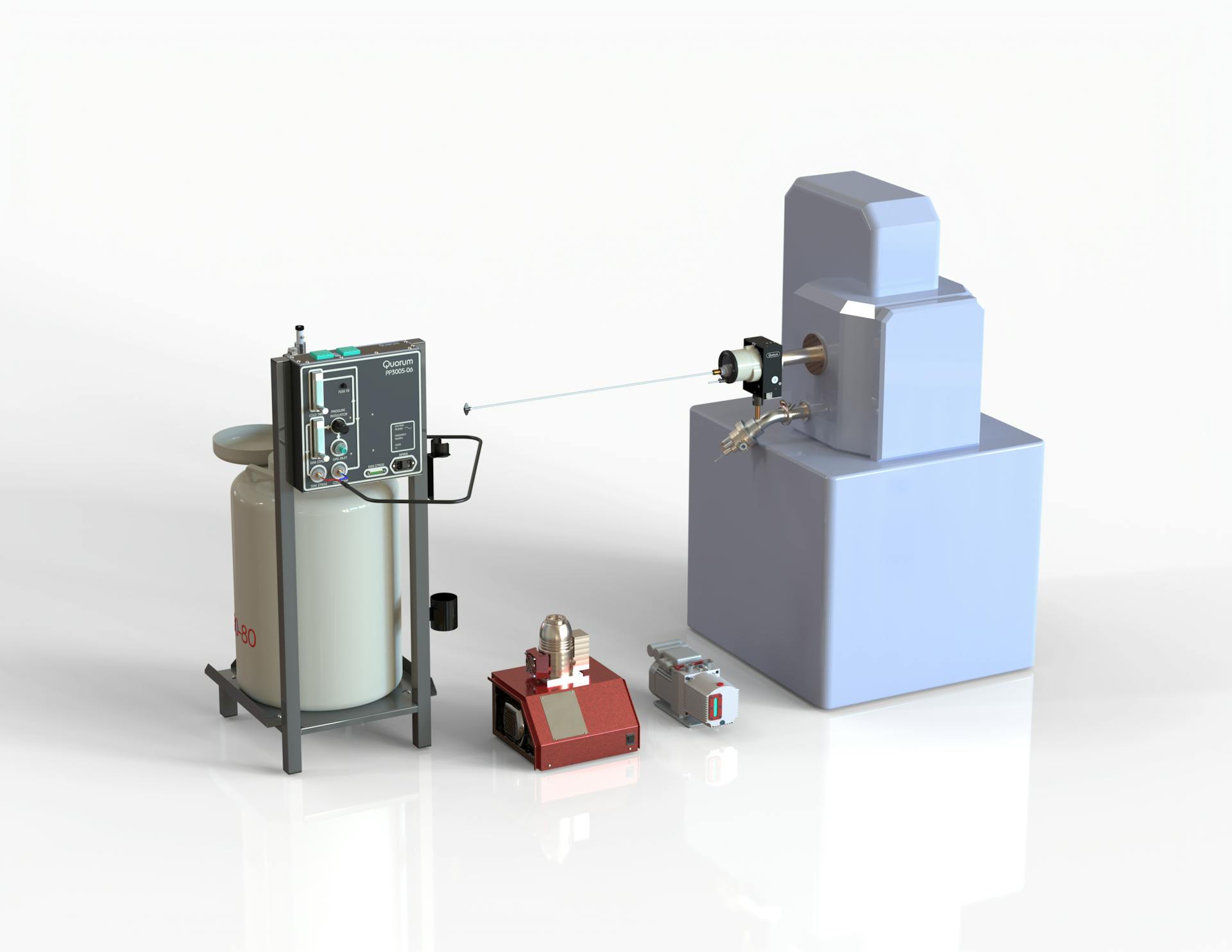

Ion Mill with Cryogenic Stage to PP3006

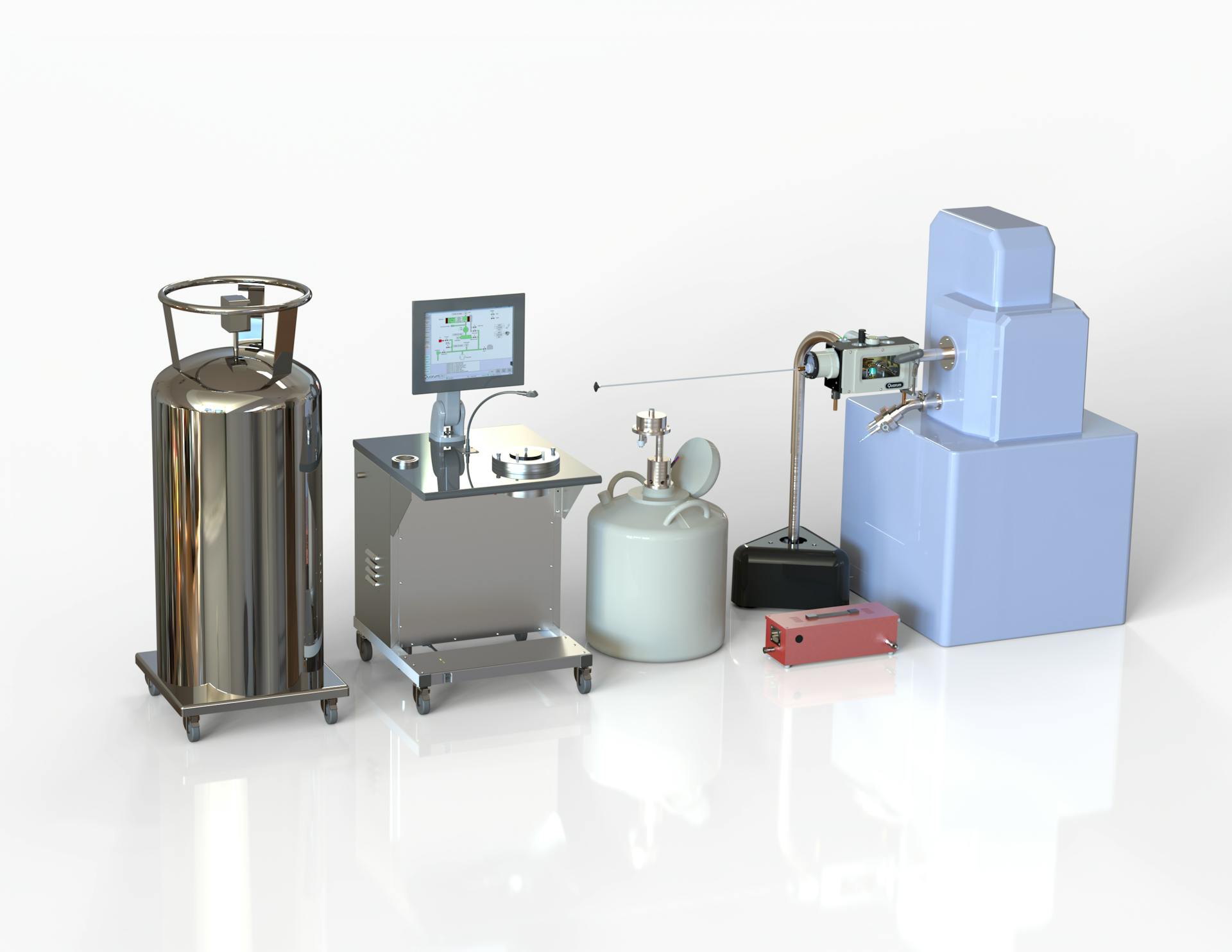

Ion Mill with Cryogenic Stage to PP3010 Prep Chamber

All workflows can transfer in both directions

The Actively Cooled Transfer (ACT) is specifically designed for transferring delicate samples under both cryogenic conditions & high vacuum or at ambient temperatures under inert atmosphere. Its unique features include a built-in cold stage and an anti-contaminator, ensuring that sample integrity is maintained during the transfer process. The ACT is equipped with a solid Magdrive transfer rod and an attached cooling dewar, offering a highly accessible and portable solution for your needs.

ACT Product Brochure.pdf

Compatible with most makes and models of SEM and FIB-SEM

Can be interfaced with other devices, such as Ion Mills

Glovebox interfacing required for inert gas transfer

Transferring materials sensitive to atmosphere, such as Battery and Fuel Cells

Operates in conjunction with the PP3010 and PP3006

Transfer in high vacuum in the region of 10-6 mbar

Overall dimensions W= 300 mm, L=881 mm, D= 303 mm

Stage temperature ≤-160°C (in 30 mins)

Vacuum level Transfer in high vacuum in the region of 10-6 mbar

Operating pressure when interfacing with Glovebox ≤ 1 bar.

Warranty 1-year warranty, with an extended warranty offer upon request

Further Information The chart of Pressure vs Time (pump down time), the chart of Temperature (Stage and Anti-contaminator) vs Time and EDS results of Oxygen reduction using ACT for sample transfer are upon request.

Configuration Interfacing required, please contact sales@quorumtech.com for more information.

Triple sputter head turbo pumped coater with large chamber ideal for coating large samples up to 200 mm with one metal. Suitable for sputtering oxidising and non-oxidising metals.

Large samples e.g. Silicon Wafers (up to 200 mm Ø ) or multiple small samples

The Q300T T Plus is a large chamber, turbo-pumped coating system, ideally suited for sputtering a single large diameter specimen up to 8″/200mm or multiple smaller specimens over a similar diameter. Ideal for thin-film applications and SEM/FE-SEM. It is fitted with three sputtering heads to ensure even deposition of individual large specimens or multiple specimens.

Triple sputter head allows coating of samples up to 200 mm Ø

590mm W x 535mm D x 420mm H (maximum height during the opening of the coating head: 772mm)

Borosilicate glass with integral PET implosion guard Size 300 mm outside diameter x 127 mm High

Full graphical interface with touch screen buttons, includes features such as a log of the last 1000 coatings and reminders for when maintenance is due

3 x Disc-style 57 mm Ø. A 0.5 mm thick chromium (Cr) is fitted as standard. Pt, Pt/Pd, Pt, Au, Au/Pd, Ni, Ag, Pd, Cu, Cr, W, Al, Ti, Fe, Ir, Co, Sn, Mo, Mg, Ta and ITO target options available in various thicknesses.

A ﬂat rotation stage for 6”(150mm) and 8” (200mm) wafers is ﬁtted  as standard.

A rotating/tilt stage and the  ‘rota cota’ rotary tilt stage are also options

NB: Please note it is not possible to sequentially sputter three different sputtering metals from each sputtering head – for sequential coating see the Q300T D Plus.

Turbo pumped coater suitable for sputtering oxidising and non-oxidising metals, and carbon evaporation, designed for high resolution SEM and FIB-SEM applications.

High resolution SEM and FIB-SEM  Protective platinum layers for FIB

The Q150T ES Plus is a turbomolecular pumped combined sputter coater and carbon evaporation system. The turbomolecular pump enables the sputtering of oxidising metals, which have a lower grain size suitable for high-resolution imaging. Similarly, lower scattering allows for high purity, amorphous carbon films of high density. The deposition head inserts can be swapped in seconds. Metal evaporation/aperture cleaning option available.

Capable of achieving vacuum of 5x10⁻⁵ mbar

Carbon rods 3.05mm X 300mm x 10 qty are supplied with carbon rod head as standard. Carbon fibre head option available. T E and T ES versions only.

Dual sputter head turbo pumped coater with large chamber ideal for coating large samples up to 200 mm with two metals. Suitable for sputtering oxidising and non-oxidising metals.

Large samples e.g Silicon Wafers (up to 200 mm Ø ) or multiple small samples Wafer inspection

Multiple sample preparation for SEM E Thin-film applications and SEM/FE-SEM

Suitable for multi-layer sequential sputtering of two materials, the Q300T D Plus has two independent sputtering heads, which allows sequential sputtering of two metals without the need to break vacuum. The system is fully automated with user deﬁned recipes controlling the pumping sequence, time, number of sputter cycles, and the current used during the process. Unlimited layers of varying thickness from two target materials can be sputtered sequentially by cycling between both targets.  When not in use the targets are shuttered for protection from contamination.

Dual sputter head dual allows sequential coating of samples, up to 150 mm Ø, with two different metals without breaking vacuum

1 x Chromium target and 1 x Gold target as standard

590 mm W x 535 mm D x 420 mm H (maximum height during the opening of the coating head: 772 mm)

Disc-style 57 mm Ø. A 0.5 mm thick chromium (Cr) and 57 mm Ø. A 0.1 mm thick Gold (Au) is fitted as standard. Pt, Pt/Pd, Pt, Au, Au/Pd, Ni, Ag, Pd, Cu, Cr, W, Al, Ti, Fe, Ir, Co, Sn, Mo, Mg, Ta and ITO target options available in various thicknesses.

A ﬂat adjustable stage capable of accepting either 4” or 6” wafers is mounted on a swinging arm stage, which rotates the stage under the targets to optimise coating.  Rotation speed is variable from 14 rpm to 38 rpm

Carbon coating for elemental analysis and coating of TEM grids

The Q150V E Plus is a turbomolecular-pumped carbon rod evaporation system (carbon cord available as option) optimised for high-vacuum applications, with an ultimate vacuum of 1 x 10⁻⁶ mbar.

Capable of sputtering oxidizing and non-oxidizing metals e.g Cr, Ir, W, Al, Ti, Au, Pt

Carbon rods 3.05mm X 300mm x 10 qty are supplied with carbon rod head as standard. Carbon fibre head option available. V E and V ES versions only.

Turbo pumped coater suitable for carbon evaporation, designed for high resolution SEM and FIB-SEM applications.

The Q150T E Plus is a turbomolecular-pumped carbon evaporation coater, suitable for TEM and SEM applications. Similarly, lower scattering allows for high purity, amorphous carbon films of high density.

Turbo pumped coater with large chamber ideal for coating large samples up to 150 mm Ø. Suitable for sputtering oxidising and non-oxidising metals, and carbon evaporation.

High resolution SEM E Large samples e.g Silicon Wafers (up to 150 mm)

Carbon coating for elemental analysis and TEM

The Q300T ES Plus is a turbomolecular-pumped combined sputter and carbon coater suitable for coating samples up to 150 mm Ø.

Single sputter head allows coating of samples up to 150 mm Ø

Large Chamber (300 mm Ø) E Pump-down Vacuum: 5x10 mbar

Disc-style 57 mm Ø. A 0.5 mm thick chromium (Cr) is fitted as standard.

A ﬂat adjustable stage capable of accepting either 4” or 6” wafers is mounted on a swinging arm stage, which rotates the stage under the targets to optimise coating.  Rotation speed is variable from 14rpm to 38rpm

Semi-automated critical point dryer with built-in thermo-electric and adiabatic cooling.

Semi-automated critical point drying of delicate biological samples, high-moisture content samples, and MEMs.

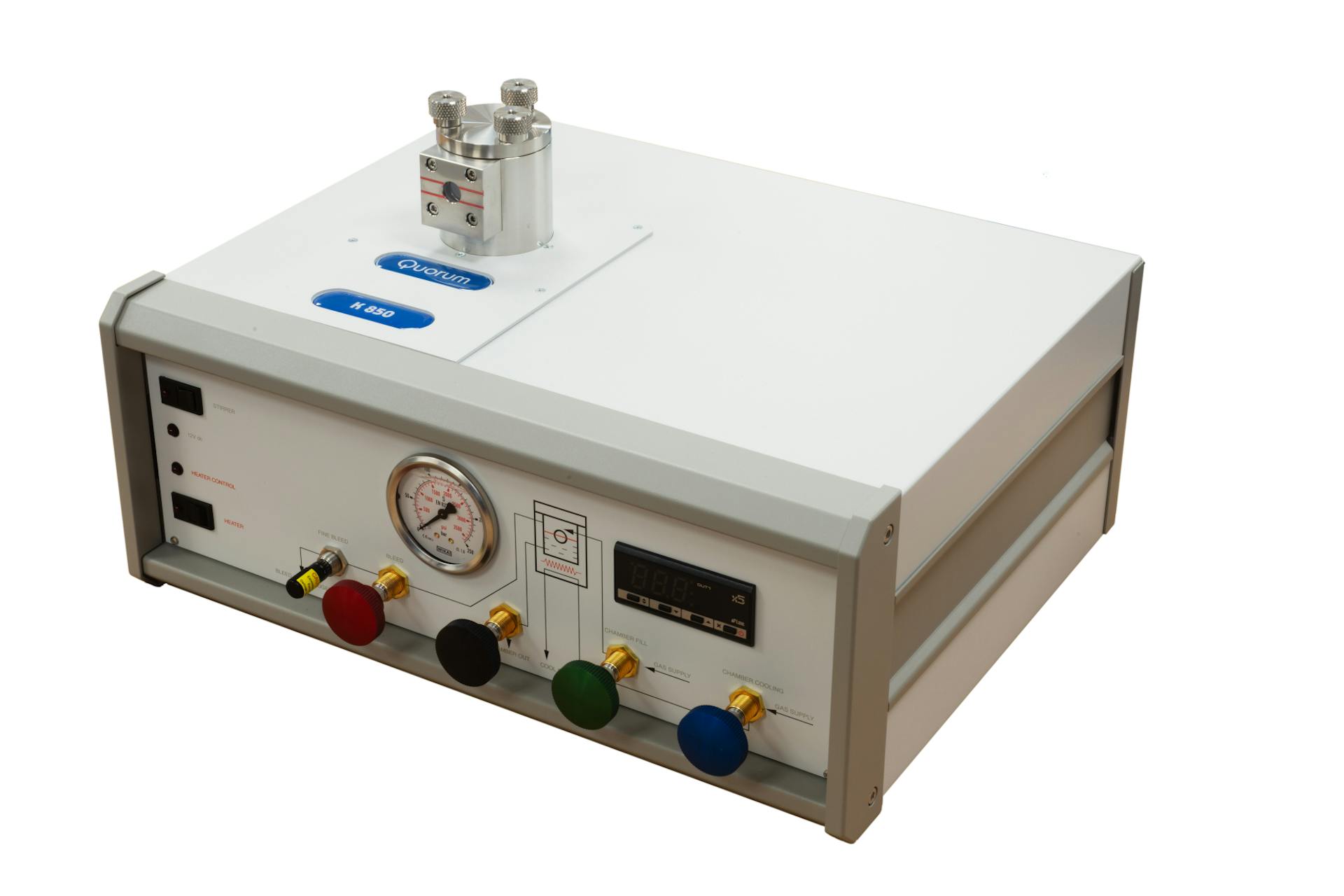

The K850 combines versatility and ease of operation. Built-in thermo-electric heating and adiabatic cooling allow precise temperature control. The vertical pressure chamber (32 mm diameter x 47 mm) has a side viewing port, which gives a clear view of the liquid meniscus during filling. A magnetic stirrer ensures optimal mixing and exchange of process fluids.

Quorum Critical Point Dryer Product Brochure.pdf

Vertical chamber with top filling and bottom draining

Built-in adiabatic cooling and thermoelectric heating – accurate temperature control

Fine-control needle valve pressure let down – precise control of decompression avoids potential damage to specimens by uncontrolled pressure release

Built-in magnetic stirrer- enhanced solvent exchange

Pressure monitoring with safety cut-out for over pressure

Chamber: vertical, diameter 32mm, height 47mm with glass viewing port and safety shield

Built-in safety devices in both hardware and software, including relief valves, level sensors, pressure switches and programming restraints

Vertical chamber 32 mm Ø x 47 mm H, with glass viewing port and safety shield.

Critical point dryer liquid carbon dioxide (CO₂) requirements

All models require a cylinder of liquid CO₂ fitted with a siphon tube (normally indicated by a vertical white stripe on the cylinder). If there is any doubt regarding the presence of a siphon tube, advice should be sought from the supplier

Standard specimen holder with 12 individual specimens wells (each 8 mm Ø x 8 mm H)

Holders for TEM grids and bulk specimens also available upon request.

Semi-automated critical point dryer optimised for drying of large samples such as wafers/MEMs (up to 8”).

Critical point drying of large samples such as wafers/MEMs (up to 8”)

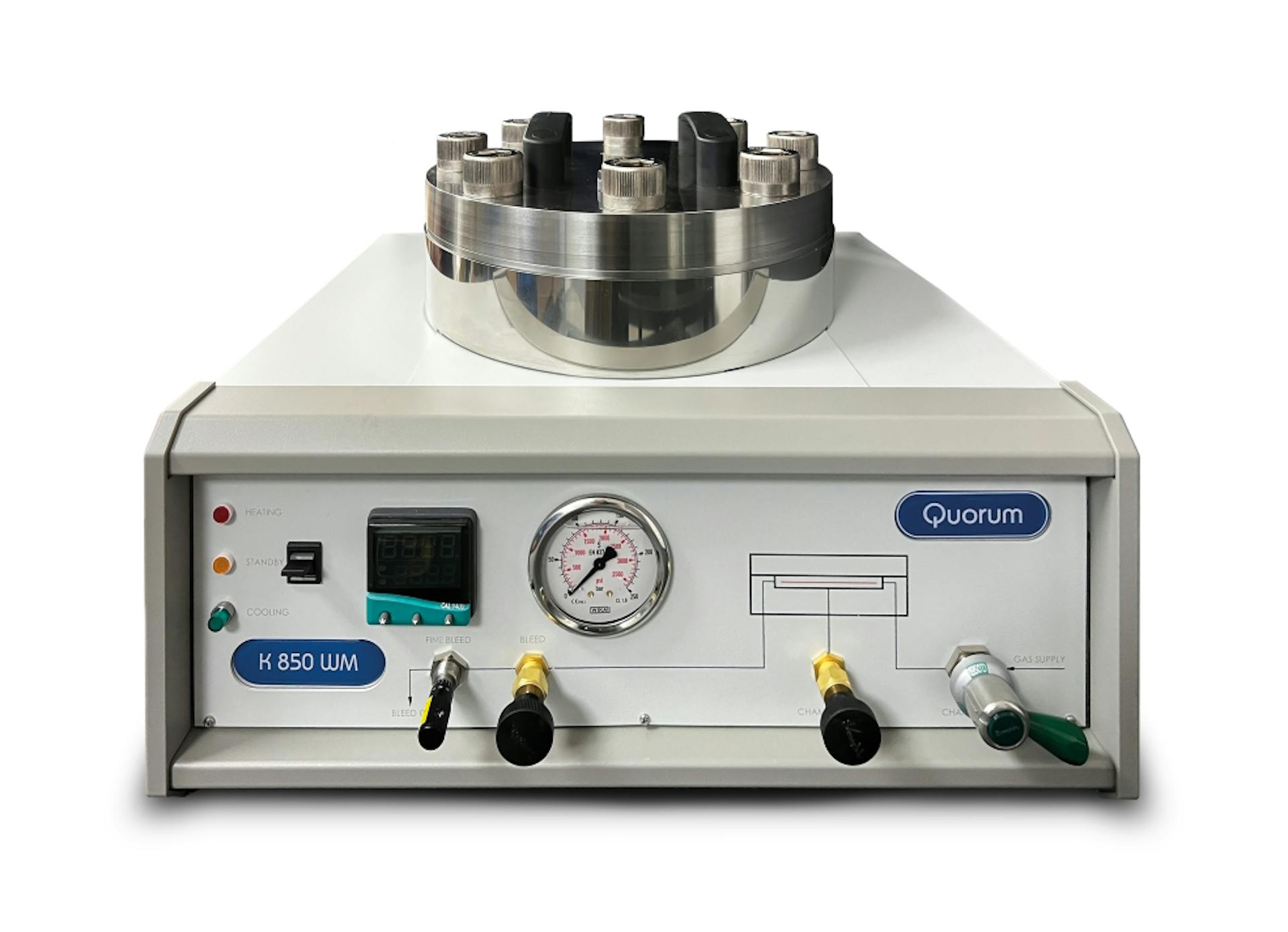

The K850WM is a compact, bench-top instrument designed to critical point dry a complete 6”/152 mm wafer. A convenient wafer holder allows rapid transfer and ensures that pre-drying does not occur.

Vertical chamber with top-loading and bottom-draining

Fine control needle valve pressure release

Temperature monitoring with safety cut-out for over pressure

E4860 Recirculating heater/chiller for cooling chamber (please specify voltage)

EK3102 Carbon dioxide bottle heating system. Allows faster filling of liquids CO₂ especially if the cylinder is stored in a cool environment

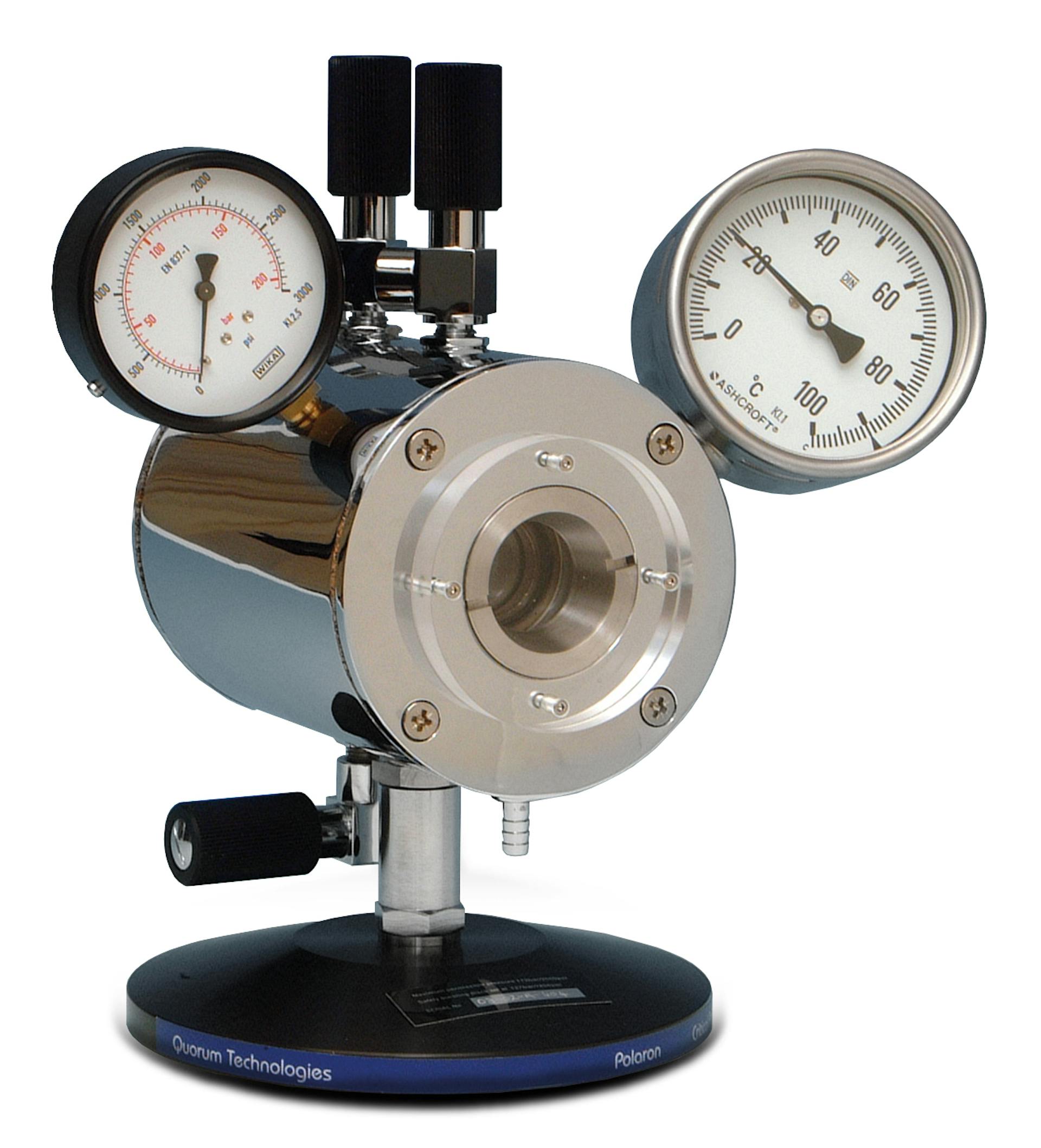

Manual critical point dryer suitable for controlled drying of MEMs, hydrogels, and aerogels.

Manual critical point drying of delicate biological samples, high-moisture content samples, and MEMs.

Suitable for controlled drying of hydrogels.

The E3100 large critical point dryer has been the industry standard for over 35 years and is used in numerous SEM laboratories around the world. Primarily used for the processing of life-sciences and geological specimens, the E3100 can also be used for the controlled drying of MEMS and aerogels.

Large, robust valves for draining of fluids, ingress of liquid CO₂ and venting of gas

Specimen handling - Temperature controlled by hot water (mains or E4860)

Vertical chamber 63.5 mm Ø x 82 mm L, with glass viewing port and safety shield.

Standard specimen holder (boat) included.

Holders for TEM grids and microscope coverslips also available upon request.

Temperature can be controlled either by mains water taps or using the recirculating heater/chiller.

Rotary pumped coater suitable for sputtering non-oxidising metals (Au, Au/Pd, Ag, Pt, and Pt/Pd), and carbon evaporation.

Rotary pumped coater suitable for use with Tungsten/LaB⁶ SEM and Benchtop SEM - a combined system capable of both sputtering and carbon coating. The deposition head inserts can be swapped in seconds. Metal evaporation/aperture cleaning option available.

Disc-style 57 mm Ø. 0.1 mm thick gold (Au) target is fitted as standard. R S and R ES versions only. Pt, Pt/Pd, Au, Au/Pd, Ag, Pd and Cu target options available in various thicknesses.

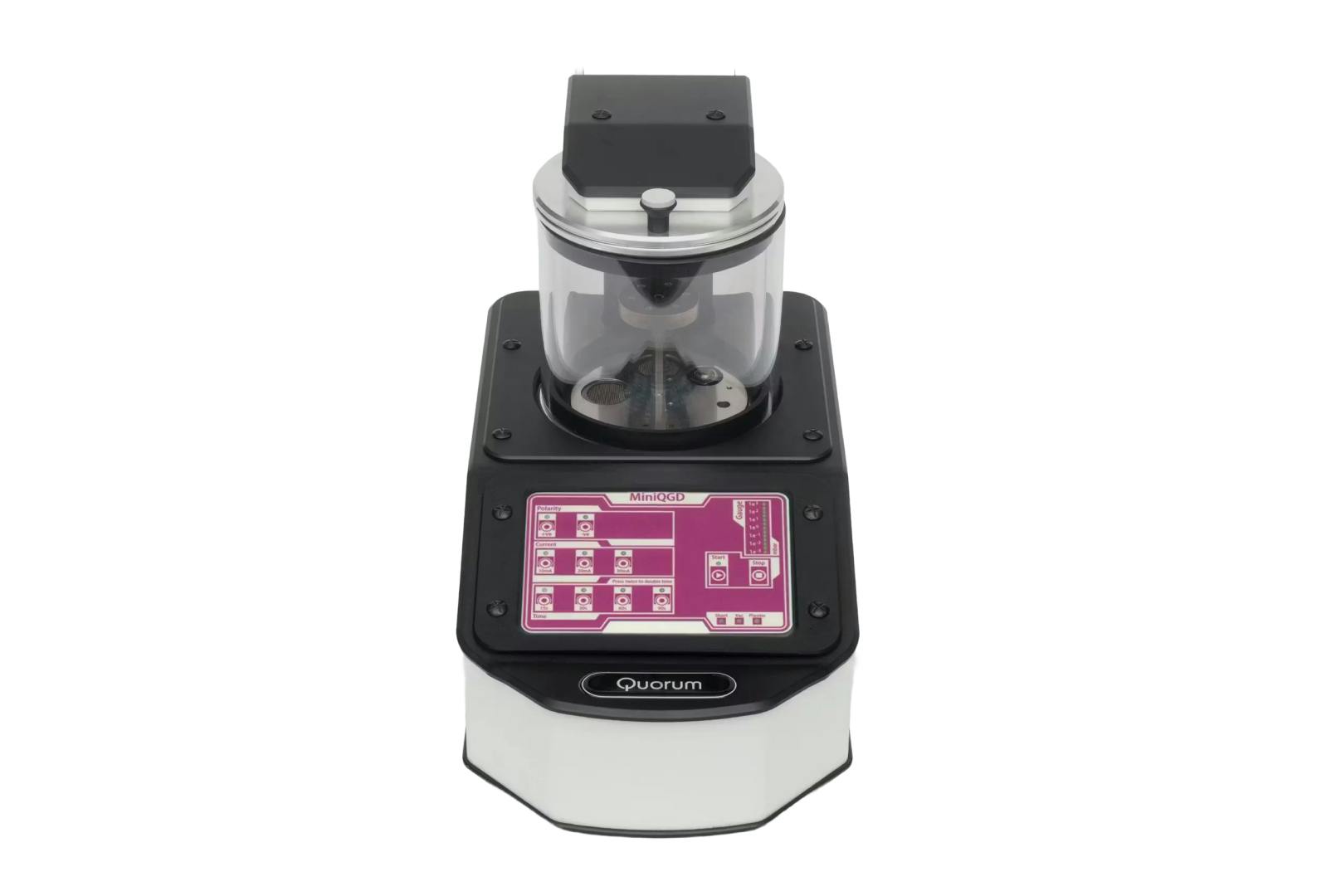

Easy-to-use single chamber glow discharge system suitable for surface modification of TEM grids.

Changing wettability of surfaces, primarily used for TEM grids to improve the spread of particles/ molecules on them , could also be used for SEM and AFM imaging when samples are applied onto substrate surfaces from liquid.

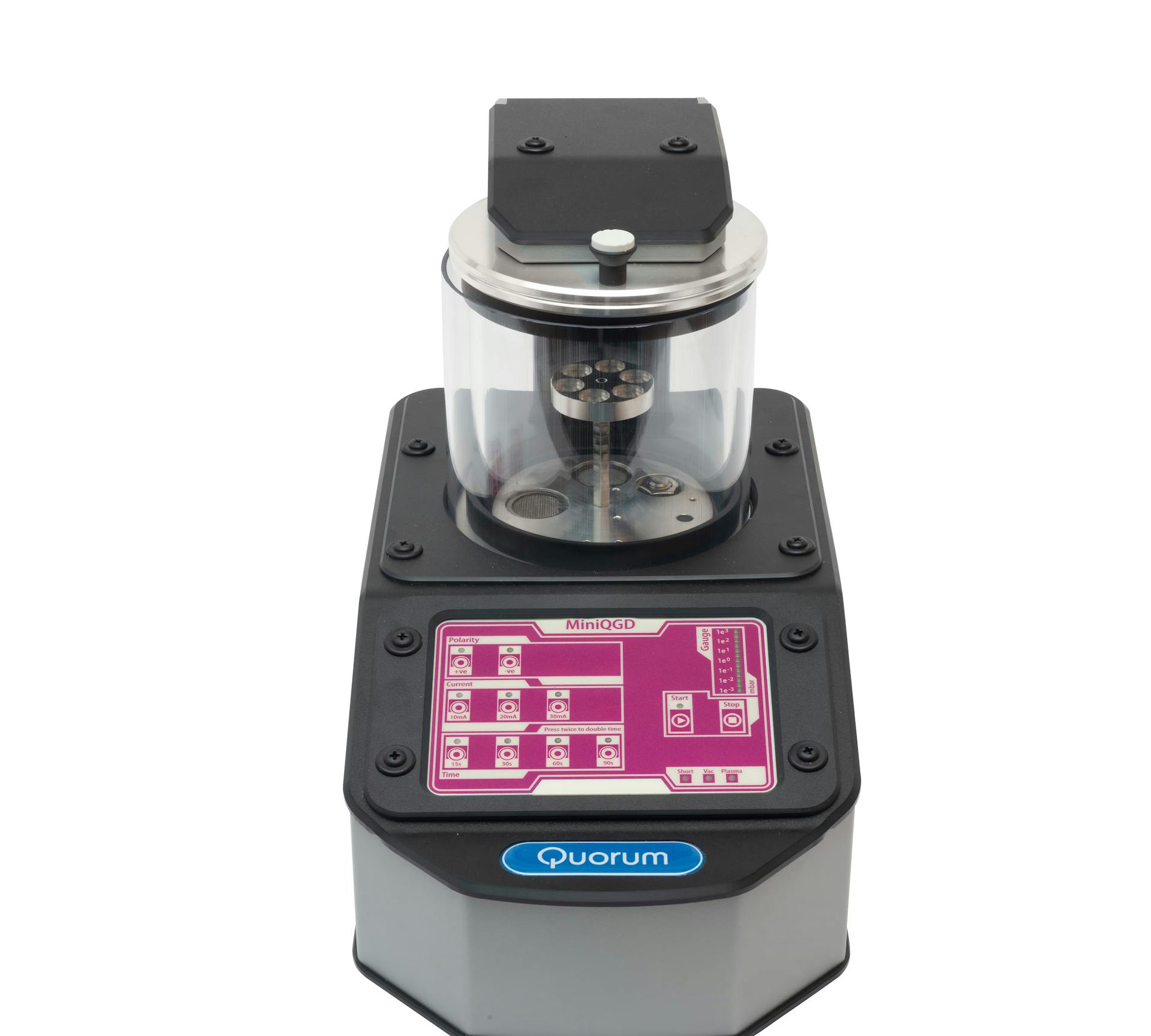

Designed with simplicity in mind, the easy-to-use MiniQ GD allows for surface modification of TEM grids. Resulting in the clear imaging of macromolecules.

MiniQ-GD-Brochure.pdf

Detachable chamber with implosion guard allowing for easy cleaning

Pre-set profiles with single touch operation

225 mm (Width) x 420 mm (Depth) x 325 mm (Height) (Total Height with coating head open 480 mm (H)

You can purchase the instrument with or without a pump. Please note, the MiniQ GD specifications are based on use with a Pfeiffer Duo 6 pump.

Supplied with 50 mm diameter sample stage.

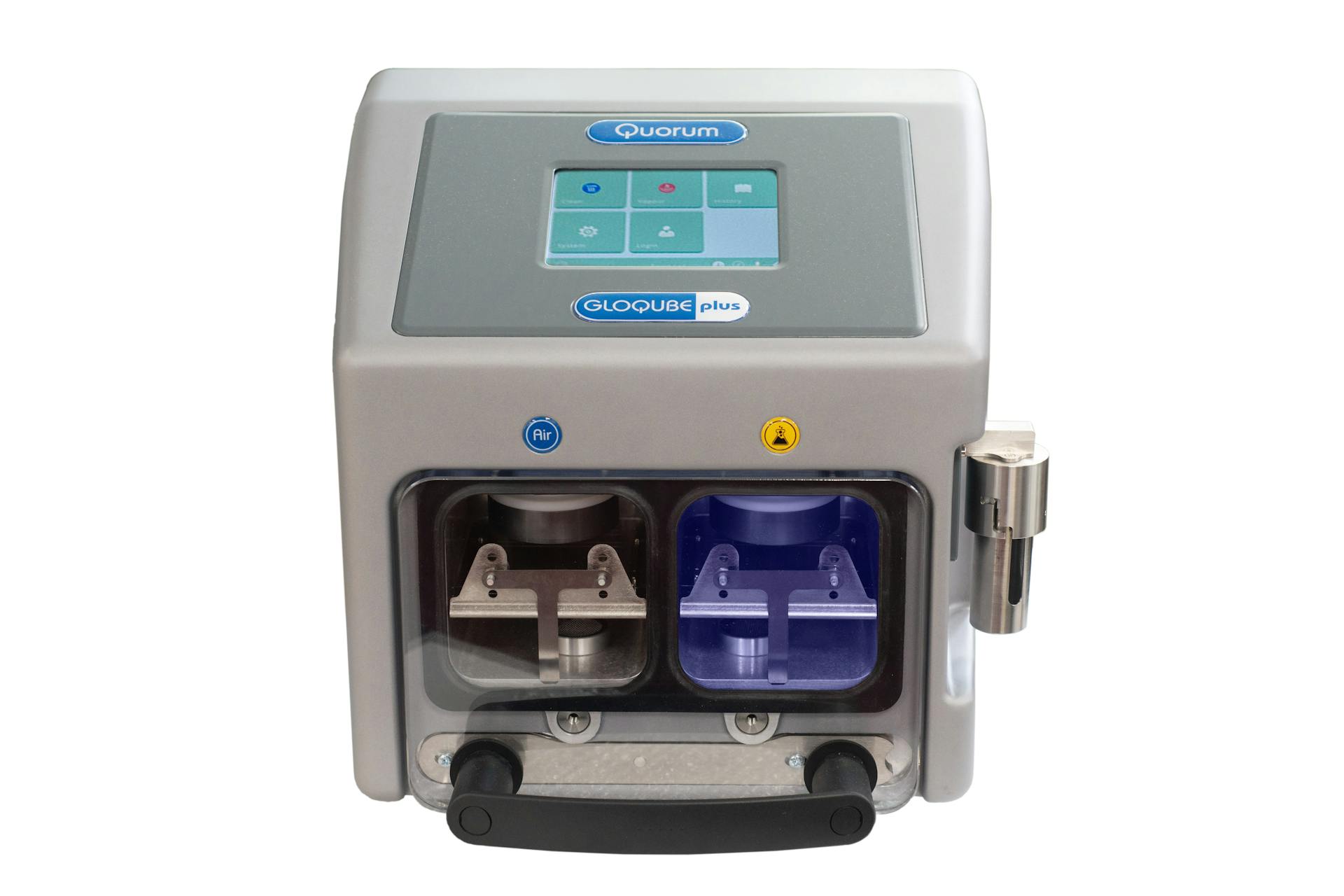

Dual chamber in-air and chemical vapour glow discharge system suitable for surface modification of TEM grids.

Hydrophilisation and cleaning of TEM grids carbon support films for better sample spreading

Improved adhesion and orientation of proteins, nucleic acids and antibodies

TEM grid preparation for nanoparticle studies

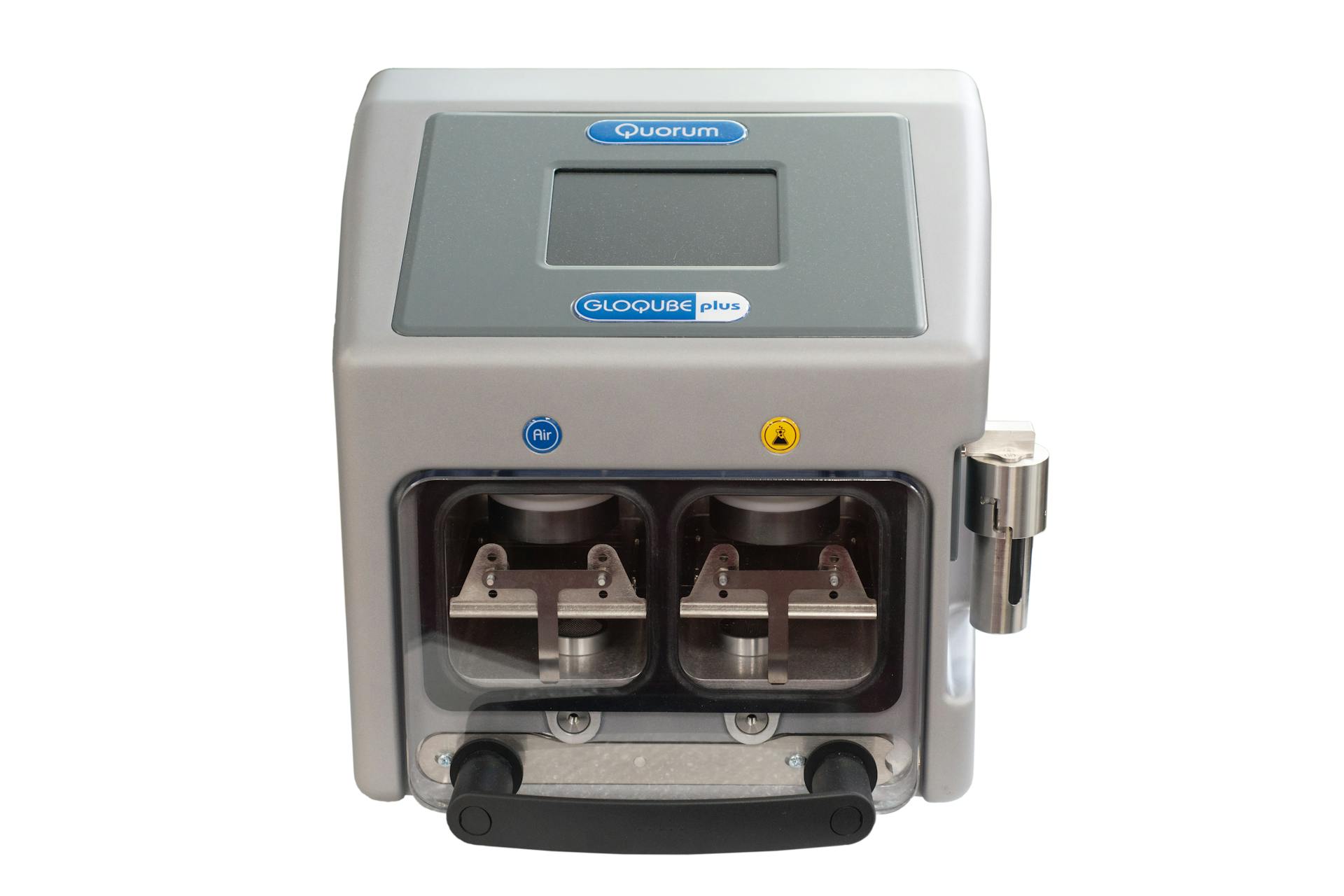

The GloQube® Plus is a cost-effective, compact and easy to use glow discharge system, designed to fulfil the needs of laboratories with TEM. The primary application of the GloQube® Plus is to modify the surface of TEM grids in a way that it meets requirements for successful imaging of a variety of macromolecules. Integrated into one system, the two chambers enable the user maximum flexibility to choose which sample preparation technique they want to use: glow discharge in-air or in-chemical vapour, without downtime for cleaning or the risk of contamination and loss of samples.

GloQube-Plus-brochure.pdf

Second chamber for separating in-air and in-vapour processes

No cross-contamination between chambers due to post-process flush cycle

Automatic vapour delivery ensures reliable and reproducible results

Purge cycles reduce water vapour and oxygen concentrations, ensuring excellent yield of specifically orientated macromolecules

Adjustable slow vent time to minimize sample disturbance

Optional fast vent for rapid process times

Three level adjustable height sample stage ensures repeatable results

You can purchase the instrument with or without a pump. Please note, the GloQube Plus specifications are based on use with a Pfeiffer Duo 6 pump.

125 x 100 mm (4.9” x 3.94”) for two 25 x 75 mm (1” x 3”) slides and a 36 place grid holder

Adjustable 12.5 mm (0.5”), 22.5 mm (0.9”) or 35 mm (1.38”)

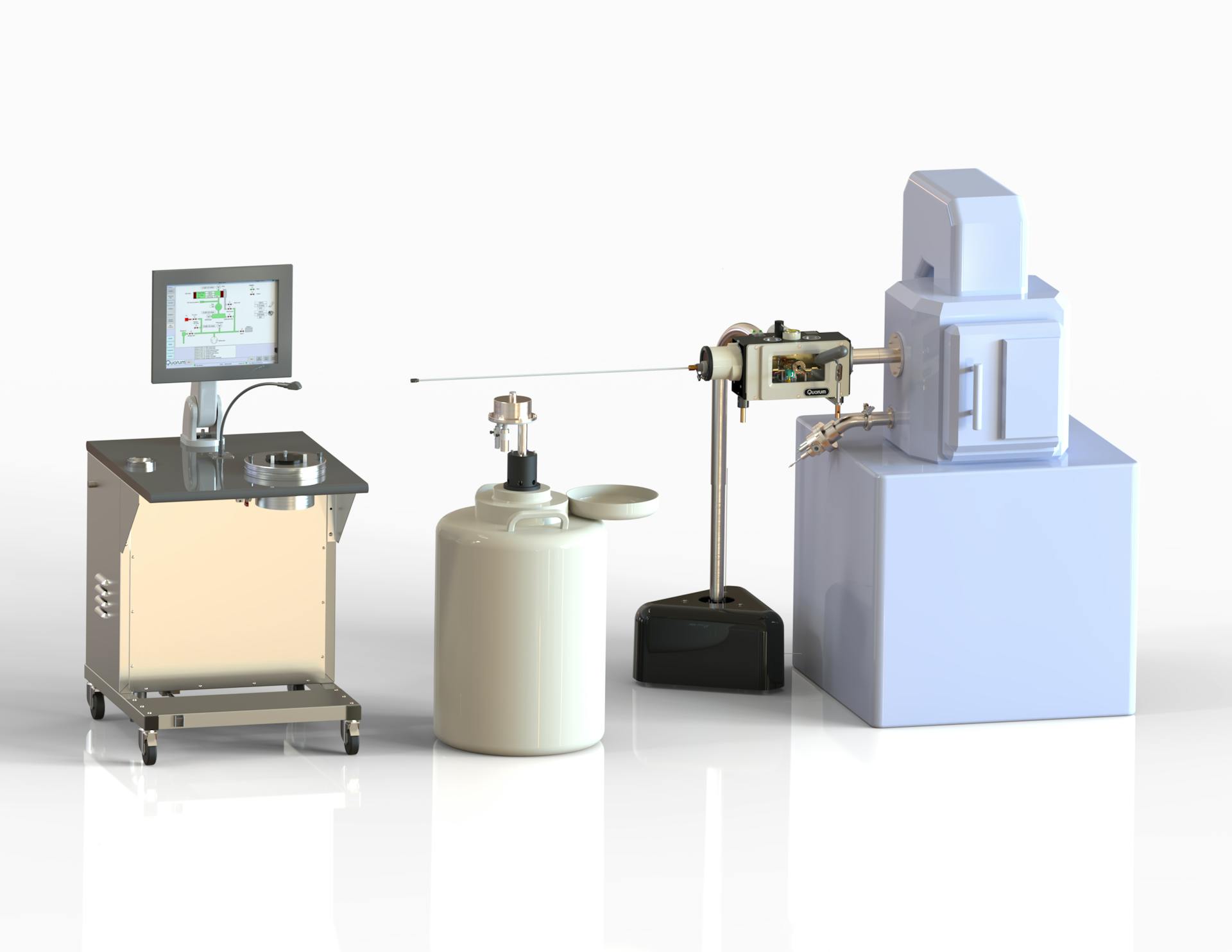

Sample transfer and gas cooling system for SEM, FIB-SEM, beamline and vacuum platforms

Materials including Batteries, Fuel cells and environmentally sensitive samples

Sample transfer and gas cooling system for SEM, FIB-SEM, beamline and vacuum platforms

Cryo Prep Solutions Brochure 2024 2.pdf

Ability to transfer vitreous frozen samples under vacuum

Gas-cooled cryo stage and anti-contaminator for rapid thermal response

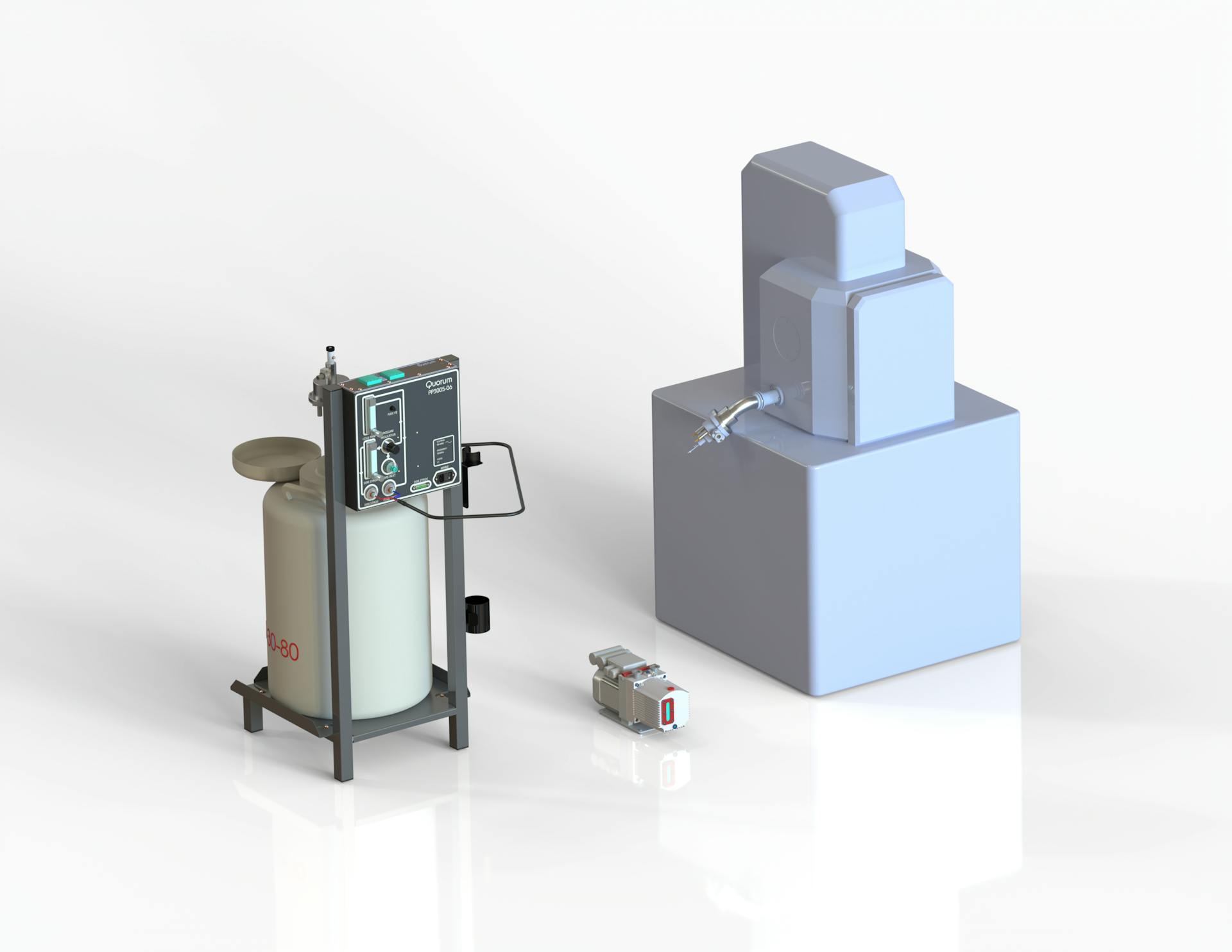

Compatible with high vacuum SEM, FIB-SEM , beamline and vacuum systems

Off column cooling with 24 hour run times before fills

Independent cooling of the cold stage and anti-contaminator

TEM Prep Slusher (Slushing Station required)

Sample transfer system for SEM, FIB-SEM, beamline and vacuum platforms.

Ambient sample transfer system for SEM, FIB-SEM, beamline and vacuum platforms.

Cryo Prep Solutions Brochure 2024.pdf

Ambient temperature airlock for SEM, FIB-SEM, beamline

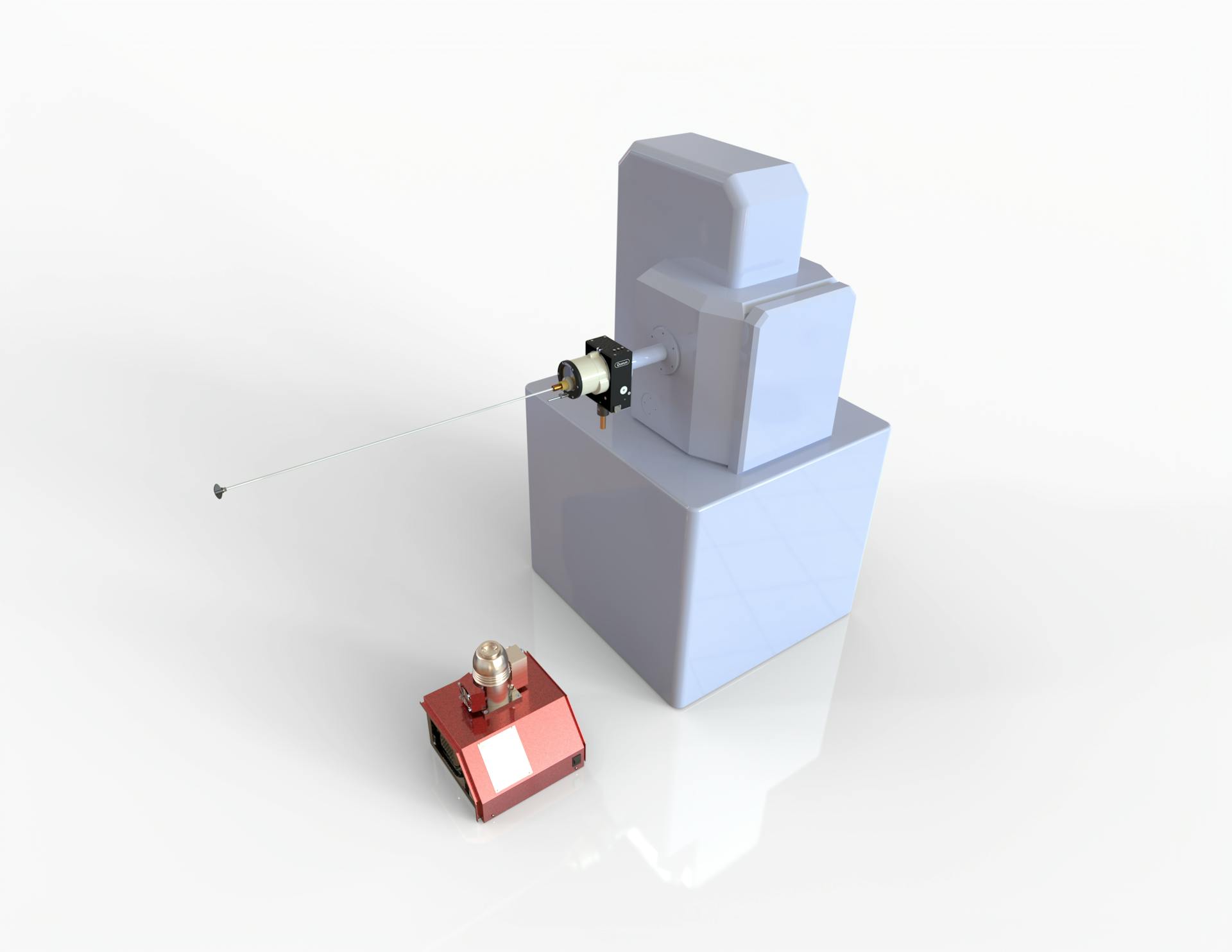

The QuickLok® sample transfer system is designed to allow air or moisture sensitive samples to be transferred from a glove box, either under inert gas atmosphere or under vacuum, to an SEM or other system.

The QuickLok® consists of an airlock, turbo pumping system (optional) and transfer pot. An adapter flange is required to fit the QuickLok® to the SEM or other system. Specimens are mounted on a transfer shuttle and are then loaded through the airlock onto a stage adapter fitted to the SEM stage.

The QuickLok® is automated and interlocked to prevent any risk of loss of microscope vacuum.

Highly automated, column-mounted, gas-cooled cryo SEM preparation and cryo transfer system suitable for most makes and models of W-SEM, FE-SEM and FIB/SEM.

Material science such as Lithium battery and Semiconductors

Characterisation of samples with high moisture content including hydrogels, oleogels and bi-gels

The PP3010 Cryo Sample Preparation System is compatible with most makes and models of SEM and FIB-SEM; the off-column gas-cooled system allows for a rapid thermal response. The preparation chamber design offers excellent visibility. The PP3010 gives users the ability to plunge freeze, fracture, sublime and coat samples in one easy to use system allowing for sample observation close to its native state.

PP3010 Cryo Stubs and Shuttles.pdf

The PP3010 Cryo Preparation System can be used as part of a workflow solution for maintaining lamella preparation and reverse vitreous transfer

Easy transfer between prep chamber and host instrument

Turbo-molecular pumped cryo preparation chamber

Cryo

PP3010 Cryo Sample Preparation System

PP3006 CoolLok

PP3005 SEMCool

PP3004 QuickLok

Coating

Q150V ES Plus

Q150V E Plus

Q150V S Plus

Q150T ES Plus

Q150T E Plus

Q150TS Plus

Q150R ES Plus

Q150RE Plus

Q150RS Plus

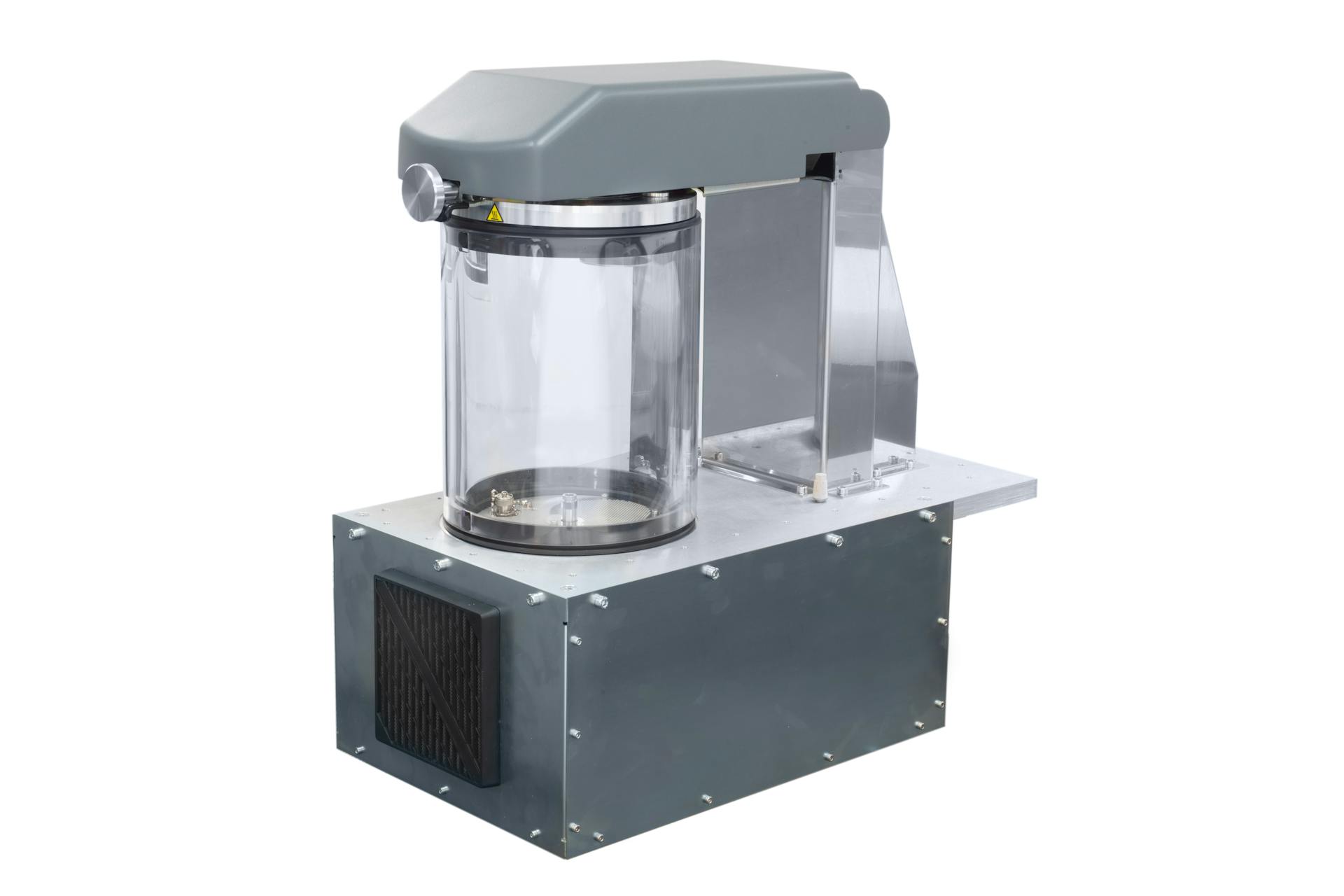

Q150 GB

Critical Point Drying

K850

K850 WM

E3100

Glow discharge

GloQube Plus

MiniQ GD
